772100

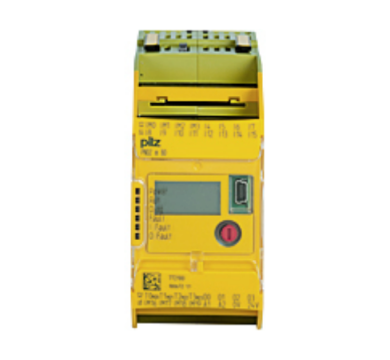

Configurable safe small controllers PNOZmulti 2, base unit, expandable, 20 safe digital inputs, 4 safe semiconductor outputs.
| Approvals: | CE, cULus Listed, BG, TÜV |
| Number of configurable I/Os: | 8 |
| Number of digital inputs: | 12 |
| Positive switching 1-pole SC output: | 4 |
| Number of test pulse outputs: | 4 |
| Supply voltage (V): | 24,0 |
| Supply voltage type: | DC |
| Supply voltage 2 (V): | 24 |
| Supply voltage type 2: | DC |
| Supply voltage type: | 0.8 W |
| Base unit: | Yes |
| Terminal type: | Screw terminal, Spring-loaded terminal |
| Terminal style: | Plug-in |
| Version for extreme environ. conditions: | Standard |
| Width dimension: | 45.0 mm |
| Height dimension: | 101.4 mm |
| Depth dimension: | 120.0 mm |
| Gross weight: | 250 g |
| Net weight: | 235 g |
| Ambient temperature: | 0 – 60 °C |
