LEMAX90X14V

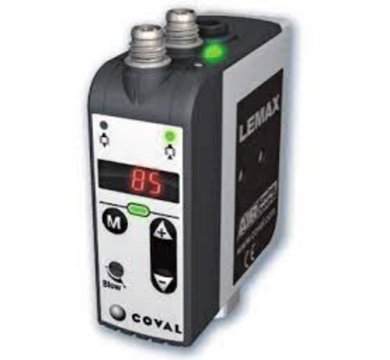

LEMAX mini-vacuum pump with "ASC" (Air Saving Control), 85% max. vacuum, 1.4 mm nozzle ID, vacuum controlled 24V DC NO and controlled blow-off 24V DC NC, electronic vacuum switch, 2 x M8 connectors 4 pins
ref. : LEMAX90X14V
| Nozzle diameter (Ø) | 1.4mm |
| Vacuum Flow (aa) | 2.45SCFM |
| Generator Control (PG) | NO/NC |
| Connection (Cx) | 2x M8-4pin |
| for islands mounting (Ilot) | no |
| Air Consumption (ca) | 3.15SCFM |
| Maximum vacuum (mv%) | 90% |
