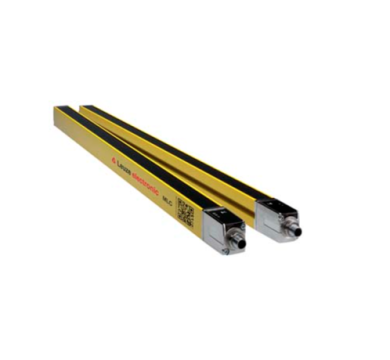

| Series |
MLC 300 |
| Device type |
Receiver |
| Contains |
2x BT-NC sliding block |
| Application |
Access guarding
Danger zone guarding
Hand protection |
| Function package |
Basic |
| Functions |
Automatic start/restart
Transmission channel changeover |
| Type |
2, IEC/EN 61496 |
| SIL |
1, IEC 61508 |
| SILCL |
1, IEC/EN 62061 |
| Performance Level (PL) |
c, EN ISO 13849-1 |
| PFHD |
5.06E-08 per hour |
| Mission time |
20 years, EN ISO 13849-1 |
| Category |
2, EN ISO 13849 |
| Resolution |
40 mm |
| Protective field height |
1,200 mm |
| Synchronization |
Optical between transmitter and receiver |
| Protective circuit |
Overvoltage protection
Short circuit protected |
| Supply voltage UB |
24 V, DC, -20 ... 20 % |
| Current consumption, max. |
150 mA |
| Fuse |
2 A semi time-lag |
| Number of safety-related switching outputs (OSSDs) |
2 Piece(s) |
| Type |
Safety-related switching output OSSD |
| Switching voltage high, min. |
18 V |
| Switching voltage low, max. |
2.5 V |
| Switching voltage, typ. |
22.5 V |
| Voltage type |
DC |
| Current load, max. |
380 mA |
| Load inductivity |
2,000 µH |
| Load capacity |
0.3 µF |
| Residual current, max. |
0.2 mA |
| Residual current, typ. |
0.002 mA |
| Voltage drop |
1.5 V |
| Switching principle |
+24 V switching |
| Switching element |
Transistor, PNP |
| Switching principle |
+24 V switching |
| Switching element |
Transistor, PNP |
| Response time |
12 ms |
| Restart delay time |
100 ms |
| Number of connections |
1 Piece(s) |
| Function |
Machine interface |

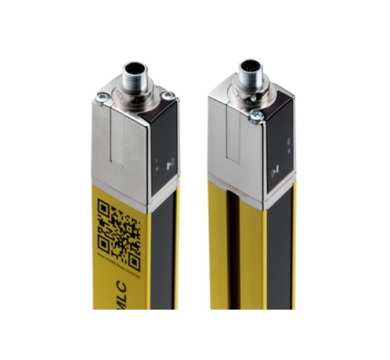

| Type of connection |
Connector |
| Thread size |
M12 |
| Type |
Male |
| Material |
Metal |
| No. of pins |
5 -pin |
| Permissible conductor cross section, typ. |
0.25 mm² |
| Length of connection cable, max. |
100 m |
| Permissible cable resistance to load, max. |
200 Ω |
| Dimension (W x H x L) |
29 mm x 1,266 mm x 35.4 mm |
| Housing material |
Metal |
| Metal housing |
Aluminum |
| Lens cover material |
Plastic / PMMA |
| Material of end caps |
Diecast zinc |
| Net weight |
1,350 g |
| Housing color |
Yellow, RAL 1021 |
| Type of fastening |
Groove mounting
Mounting bracket
Mounting on Device Column
Swivel mount |
| Type of display |
LED |
| Number of LEDs |
2 Piece(s) |
| Ambient temperature, operation |
-15 ... 55 °C |
| Ambient temperature, storage |
-30 ... 70 °C |
| Relative humidity (non-condensing) |
0 ... 95 % |
| Degree of protection |
IP 65 |
| Protection class |
III |
| Certifications |
TÜV Süd
c CSA US
c TÜV NRTL US |
| Vibration resistance |
50 m/s² |
| Test procedure for oscillation in accordance with standard |
IEC/EN 60068-2-6 |
| Shock resistance |
100 m/s² |
| Test procedure for shock in accordance with standard |
IEC/EN 60068-2-6 |
| US patents |
US 6,418,546 B |
| Customs tariff number |
85365019 |
| ECLASS 8.0 |
27272704 |
| ECLASS 9.0 |
27272704 |
| ECLASS 10.0 |
27272704 |
| ECLASS 12.0 |
27272704 |
| ETIM 5.0 |
EC002549 |
| ETIM 6.0 |
EC002549 |
| ETIM 7.0 |
EC002549 |
| ETIM 8.0 |
EC002549 |
