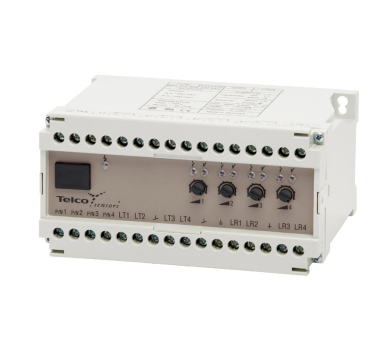

MPA 41 A 703
| Function | Amplifier |
| Supply Voltage | 24 V dc |
| Number of Channels | 4 |
| Sensing Range | 35 m |
| Sensitivity Adjustment | Manual |
| Output | 4 individual relays and 4 individual NPN/PNP |
| Housing | Screw terminals |
| Supply Voltage | 24 V dc |
| Voltage Tolerance | +/– 15 % |
| Current Consumption | Max. 6,5 VA |
| Response Time ton / toff, Relay | Short range: 35ms/35ms Long Range: 60 ms/60 ms |
| Response Time ton / toff, Transistor | Short range: 25 ms/25 ms Long Range: 50 ms/50 ms |
| Output, Relay | 1 open/ 1 close, 250 V ac/3 A, 120 V ac/5 A |
| Output, Transistor | 40 mA / 30 V dc |
| Power On Indicator | Green LED |
| Output Indicator | Red LED |
| Signal Level Indicator | Green LED |
| Hysteresis | Approx. 35 % |
| Operation Frequency, Relay | Short range: 14 Hz / Long Range: 8 Hz |
| Operation Frequency, Transistor | Short range: 20 Hz / Long Range: 10 Hz |
| Housing Material | Polycarbonate |
| Operation Temperature | – 10 to +50 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 30 |
Wiring Diagram
Dimensions
