SGO 5000
Load capacity 250 - 5,000 kg

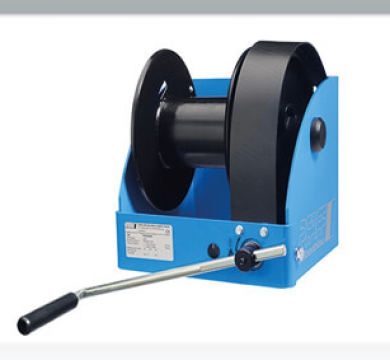

The wall cable winch with worm gear and load pressure brake for heavy loads.
equipment and processing
Technical data of the wall cable winch SW-W-SGO:
model |
EAN no. 4050939* |
Load capacity 1st layer |
Load capacity top layer |
rope diameter 1 |
Usable rope length 1st layer |
Usable rope length top layer |
Stroke per crank revolution |
Required crank force |
weight without rope |
kg |
kg |
mm |
m |
m |
mm |
Dan |
kg |
||
SGO 250 |
*049263 |
250 |
92 |
4 |
3.6 |
104 |
17 |
6 |
10 |
SGO 500 |
*049270 |
500 |
224 |
6 |
4.3 |
78 |
20 |
10 |
13 |
SGO 1000 |
*051464 |
1,000 |
527 |
8th |
5.5 |
63 |
13 |
13 |
22 |
SGO 1500 |
*051563 |
1,500 |
846 |
10 |
4.2 |
41 |
9 |
14 |
24 |
SGO 2000 |
*050443 |
2,000 |
1,038 |
12 |
5.4 |
75 |
5/12² |
11/24² |
60 |
SGO 3000 |
*050481 |
3,000 |
1,667 |
14 |
5.7 |
68 |
5/11² |
14/31² |
78 |
SGO 5000 |
*050818 |
5,000 |
3,276 |
18 |
5.2 |
43 |
3/13² |
14/73² |
117 |
