541010

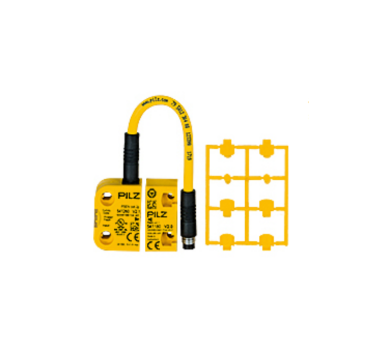

RFiD safety switch 2 safe SC outputs, 8-pin M8 male connector, one actuation direction, support for SDD, IP67, switching distance 11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece coded switch with actuator.
| Approvals: | CE, cULus Listed, TÜV, FCC, IC |
| Sensor principle: | Transponder |
| Type of coding: | Coded |
| Number of OSSD outputs: | 2 |
| Number of inputs: | 2 |
| Connection type: | M8, 8pol. male |
| Supply voltage (V): | 24,0 |
| Supply voltage type: | DC |
| Power consumption DC: | 1.0 W |
| Assured switching distance: | 8.0 mm |
| Assured release distance: | 20.0 mm |
| Protection type, housing: | IP6K9K |
| Width dimension: | 26.0 mm |
| Height dimension: | 37.0 mm |
| Depth dimension: | 18.0 mm |
| Gross weight: | 70 g |
| Net weight: | 50 g |
| Ambient temperature: | -25 – 70 °C |
