570510

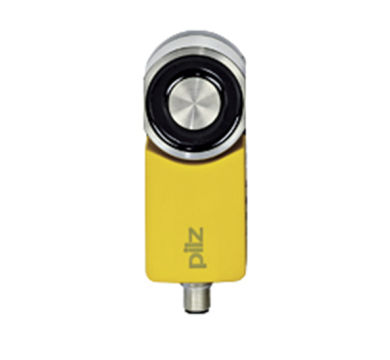

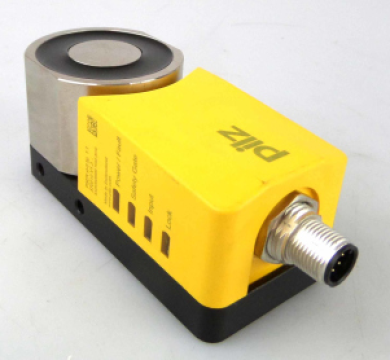

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: coded, 8- pin M12 connector, 4 LEDs, IP67, package contents = 1 sensor without actuator
| Assured release distance: | 8.0 mm |
| Approvals: | CE, cULus Listed, TÜV, FCC, IC |
| Sensor principle: | Transponder |
| Type of coding: | Coded |
| Holding force: | 500 N |
| Number of OSSD outputs: | 2 |
| Number of inputs: | 3 |
| Connection type: | M12, 8pol. male |
| Supply voltage (V): | 24,0 |
| Supply voltage type: | DC |
| Power consumption DC: | 4.8 W |
| Protection type, housing: | IP67 |
| Width dimension: | 45.0 mm |
| Height dimension: | 122.0 mm |
| Depth dimension: | 44.0 mm |
| Gross weight: | 630 g |
| Net weight: | 570 g |
| Ambient temperature: | -25 – 55 °C |
