570520

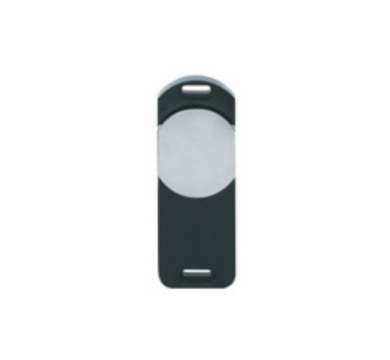

Magnetic safety gate system for applications up to SIL3/PL e/Cat4. Magnetic holding force 500N (process protection). Coding: coded, IP67, package contents = 1 standard actuator
Approvals: | CE, cULus Listed, TÜV, FCC, IC |
Sensor principle: | Transponder |
Type of coding: | Coded |
Protection type, housing: | IP67 |
Housing material: | Anticorodal, hard anodised |
Width dimension: | 52.0 mm |
Height dimension: | 138.0 mm |
Depth dimension: | 23.0 mm |
Gross weight: | 435 g |
Net weight: | 375 g |
Ambient temperature: | -25 – 55 °C |
