774080

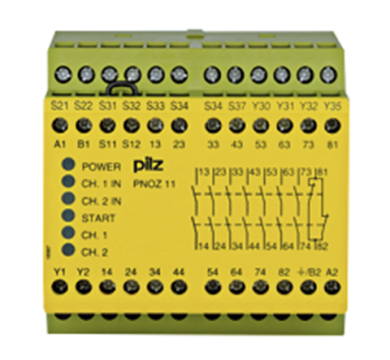

Safety relay (standalone), inputs: 1/2-channel wiring with detection of shorts across contacts, outputs: 7 N/O, 1 N/C, 1 SC, automatic/manual/ monitored start, UB 24 V AC/DC, width: 90 mm, screw terminals integrated, monitoring of E-STOP, safety gates.
| Approvals: | CE, cULus Listed, TÜV, CCC |
| Application options: | Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch |
| Operating modes: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset |
| Product standard: | EN 60947-5-1 |
| Standards: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V): | 24,0 |
| Supply voltage type: | AC |
| Supply voltage type 2: | DC |
| Supply voltage 2 (V): | 24 |
| Terminal style: | fixed |
| Terminal type: | Screw terminal |
| Number of instantaneous safety contacts: | 7 |
| Number of auxiliary contacts: | 1 |
| Number of semiconductor outputs: | 2 |
| Stop category: | 0 |
| Max. current at DC13 I (6 cycles/min): | 7.0 A |
| Max. current at AC15: | 5.0 A |
| Width dimension: | 90.0 mm |
| Height dimension: | 87.0 mm |
| Depth dimension: | 121.0 mm |
| Gross weight: | 650 g |
| Net weight: | 640 g |
| Ambient temperature: | -10 – 55 °C |
