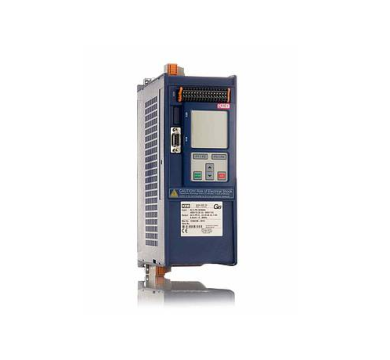

Frequency Inverter – COMBIVERT G6

The COMBIVERT G6 is a frequency inverter for controlled applications in the performance range 0.75kW to 30kW. The COMBIVERT G6 handles control for either asynchronous AC motors or synchronous servo-motors - with absolutely no return.

The modular drive platform and strict consistency ensure a uniform basis throughout the range. The COMBIVERT G6 also offers a communications and safety feature designed for controlled applications, to meet the demands of modern drive controllers.

Models

• Consistent development platform
• Configurable model range

• Integrated operating unit

Operation

• • Integrated LCD display for commissioning and display of system-related data

• Service interface for commissioning and diagnostics of system-related data on a PC

Communication

• EtherCAT
• CANopen

• IO-LINK
• VARAN
• Diagnostic interface

Motor operation

• Universal for asynchronous - and synchronous motors

• Integrated brake transistor

Software functions

• V/f operation
• SSM (Sensorless Motor Management) operation
• ASCL (asynchronous-sensorless control) for asynchronous motors without return
• SCL (synchronous-sensorless control) for synchronous motors without return

• Exceptional shaft performance on equipment versions with encoder-less controlled operating mode
• Adjustable switching frequency

Functional safety

• STO (Safe Torque Off)


• SS1 (Safety Stop 1)


• SSM // f= 0Hz – TÜV-certified SSM function with level 0 Hz
