Frequency inverter

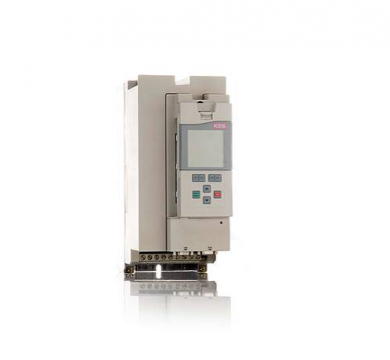

The COMBIVERT F5 is the standard frequency inverter for controlled and regulated applications for heavy-duty tasks in machine and installation manufacture with performance in stages up to 900 kW.
COMBIVERT F5 is the control solution for both asynchronous AC motors and synchronous servo-drives.
The modular software meets maximum demands in terms of speed, torque and breakaway torque with or without encoder feedback.
Consistent operation, identical handling, with the same tools, provide aids in practical installation, commissioning and service tasks.
Models
F5 BASIC - Standard equipment for control tasks with rated output of 0.37 to 15 kW
F5 COMPACT - Universal series with extended I/O options up to 90 kW
F5 MULTI - Controlled and regulated drive controllers according to the "All in one" principle for applications up to 900 kW
Operation
Modular via plug-in operating unit (operator) or diagnostics interface
Motor operation
Universal operation for asynchronous -, SMPM-, IPM-, High Torque, High Speed
Motor temperature monitoring KTY / PTC / PT 1000
Integral brake transistor
Integral brake control
Communication
Modular, plug-in fieldbus connection via operator
Profibus
Interbus
CANopen
DeviceNet
MODBUS
EtherNet TCP/IP
EtherCAT
ETHERNET POWERLINK
ProfiNET
EtherNet/IP
SERCOS II
High-End software functions
V/f and current-determinant operating modes
Exceptional shaft performance with torque pre-control
