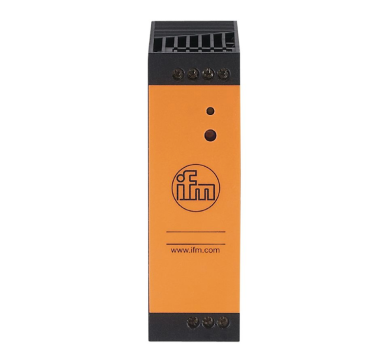

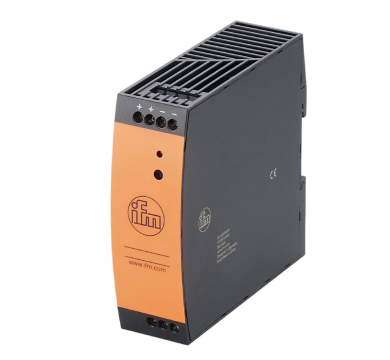

| Electrical data |
| Frequency AC [Hz] |
47...63 |
| Operating voltage tolerance [%] |
10 |
| Nominal voltage AC [V] |
230 |
| Input voltage range AC [V] |
200...240 |
| Output voltage DC [V] |
24...28 |
| Protection class |
I; (IEC 61140) |
| Overvoltage protection |
yes; (< 34 V DC) |
| Output voltage [V] |
adjustable; output voltage to SELV, PELV |
| Max. output current at min. output voltage [A] |
5 |
| Max. output current at max. output voltage [A] |
4.3 |
| Max. output current peak at min. output voltage [A] |
6 |
| Max. output current peak at max. output voltage [A] |
5.1 |
| Output power (permanent) [W] |
120 |
| Power factor (nominal voltage 230 V AC / 50 Hz) |
0.54 |
| Number of output circuits |
1 |
| Max. residual ripple [mV] |
100 |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A] |
28 |
| Efficiency (nominal voltage 230 V AC / 50 Hz) [%] |
90.5 |
| External input protection |
≤ B-10 A / ≤ C-6 A |
| Derating [W/K] |
3 (55...70 °C) |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] |
60 |
| Input current (nominal voltage 230 V AC / 50 Hz) [A] |
1.06 |
| Power loss (nominal voltage 230 V AC / 50 Hz) [W] |
12.6 |
| Back feeding protection [V] |
35 |
| Outputs |
| Short-circuit proof |
yes |
| Overload protection |
yes |
| Overload performance |
output current constant |
| Parallel connection of outputs possible |
no |
| Series connection of outputs possible |
yes |
| Operating conditions |
| Ambient temperature [°C] |
-10...70 |
| Note on ambient temperature |
| observe the free space for convection (see operating instructions) |
|
| Storage temperature [°C] |
-40...85 |
| Max. relative air humidity [%] |
95; (IEC 60068-2-30) |
| Protection |
IP 20; (EN 60529) |
| Degree of soiling |
2; (IEC 62103: conductive soiling not permitted) |
| Tests / approvals |
| EMC |
| EN 61000-6-1 |
|
| EN 61000-6-2 |
|
| EN 61000-6-4 |
|
|
| Vibration resistance |
| IEC 60068-2-6 |
±1,6 mm 2...17,8 Hz / 2 g 17,8...500 Hz |
|
| Shock resistance |
| IEC 60068-2-27 |
30 g 6 ms / 20 g 11 ms |
|

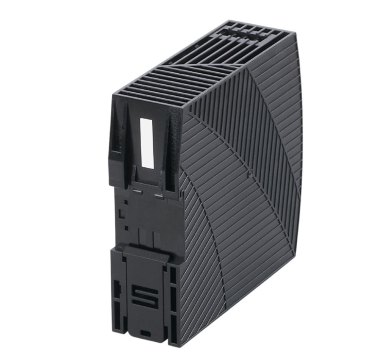

| Mechanical data |
| Weight [g] |
372.5 |
| Type of mounting |
rail; (TH35 (EN 60715)) |
| Dimensions [mm] |
124 x 39 x 129 |
| Materials |
PC |
| Displays / operating elements |
| Display |
|
| Remarks |
| Remarks |
| Series connection of outputs only applies to identical units up to max. 150 V DC overall voltage |
| UL 508 (Industrial Control Equipment) |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
screw terminals: |
| Diagrams and graphs |

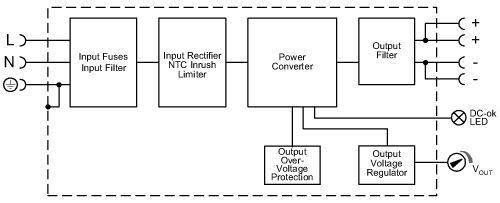

| block diagram |
|
| output characteristics |
|
| characteristic curve for degree of efficiency / power loss |
|
| characteristic line for derating |
|

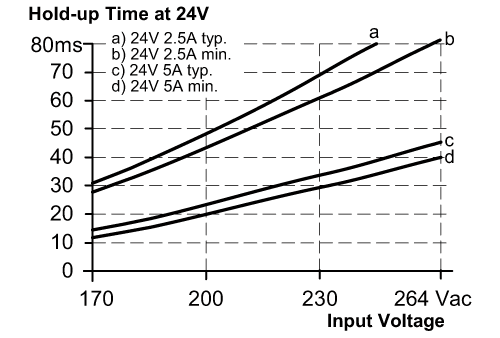

| characteristic line for mains buffering time |
|
