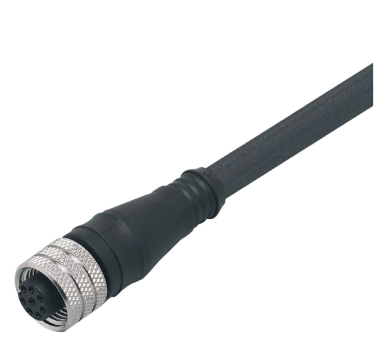

E80021
| Application | |
|---|---|
| Special feature | Screened cable |
| Electrical data | |
| Operating voltage [V] | < 30 AC / < 36 DC |
| Protection class | III |
| Max. current load total [A] | 2 |
| Operating conditions | |
| Ambient temperature [°C] | -25...90 |
| Protection | IP 67 |
| Mechanical data | |
| Weight [g] | 159.8 |
| Dimensions [mm] | 15 x 15 x 43 |
| Materials | TPU |
| Moulded-body material | TPU |
| Material nut | brass, nickel-plated |
| Remarks | |
| Pack quantity | 1 pcs. |
| Electrical connection | |
| Cable: 2 m, PUR, black, shielded; 8 x 0.25 mm² (14 x Ø 0.15 mm ) | |
| Electrical connection - socket | |
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 1...1.5 Nm; Shielded connection cable: screen connected |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E80021-01 — 21.07.2011 —  |
|
