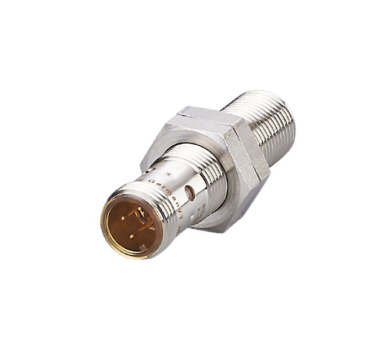

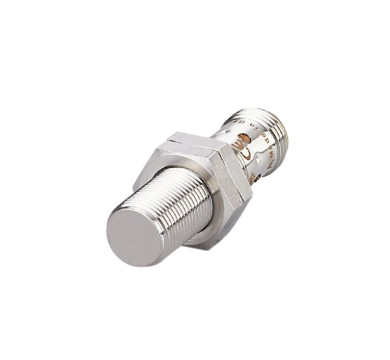

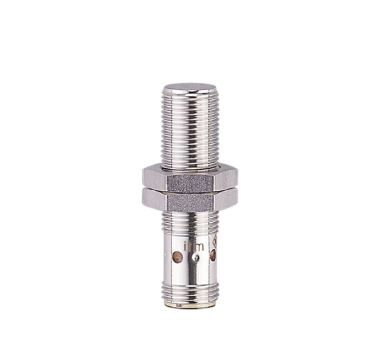

IF509A
| Product characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical design | PNP | ||||||||||
| Output function | normally open | ||||||||||
| Sensing range [mm] | 4 | ||||||||||
| Housing | threaded type | ||||||||||
| Dimensions [mm] | M12 x 1 / L = 45 | ||||||||||
| Application | |||||||||||
| Special feature | Gold-plated contacts; Increased sensing range; Full-metal housing | ||||||||||
| Pressure rating [bar] | 100 | ||||||||||
| Note on pressure rating |
|
||||||||||
| Electrical data | |||||||||||
| Operating voltage [V] | 10...30 DC | ||||||||||
| Current consumption [mA] | < 10 | ||||||||||
| Protection class | III | ||||||||||
| Reverse polarity protection | yes | ||||||||||
| Outputs | |||||||||||
| Electrical design | PNP | ||||||||||
| Output function | normally open | ||||||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||||||
| Permanent current rating of switching output DC [mA] | 100 | ||||||||||
| Switching frequency DC [Hz] | 100 | ||||||||||
| Short-circuit protection | yes | ||||||||||
| Overload protection | yes | ||||||||||
| Detection zone | |||||||||||
| Sensing range [mm] | 4 | ||||||||||
| Real sensing range Sr [mm] | 4 ± 10 % | ||||||||||
| Operating distance [mm] | 0...3.24 | ||||||||||
| Increased sensing range | yes | ||||||||||
| Accuracy / deviations | |||||||||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminium: 0.5 / copper: 0.2 | ||||||||||
| Hysteresis [% of Sr] | 1...15 | ||||||||||
| Operating conditions | |||||||||||
| Ambient temperature [°C] | 0...60 | ||||||||||
| Note on ambient temperature |
|
||||||||||
| Protection | IP 67; (when used outside the hazardous area: IP 65, IP 66, IP 67, IP 68, IP 69K) | ||||||||||
| Tests / approvals | |||||||||||
| ATEX marking | |||||||||||
| EMC |
|
||||||||||
| MTTF [years] | 1217 | ||||||||||
| Mechanical data | |||||||||||
| Weight [g] | 43.8 | ||||||||||
| Housing | threaded type | ||||||||||
| Mounting | flush mountable | ||||||||||
| Dimensions [mm] | M12 x 1 / L = 45 | ||||||||||
| Thread designation | M12 x 1 | ||||||||||
| Materials | stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) | ||||||||||
| Tightening torque [Nm] | 25 | ||||||||||
| Full-metal housing | yes | ||||||||||
| Displays / operating elements | |||||||||||
| Display |
|
||||||||||
| Accessories | |||||||||||
| Items supplied |
|
||||||||||
| Remarks | |||||||||||
| Pack quantity | 1 pcs. | ||||||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — IF509A — 06.01.2020 —  |
|||||||||||
