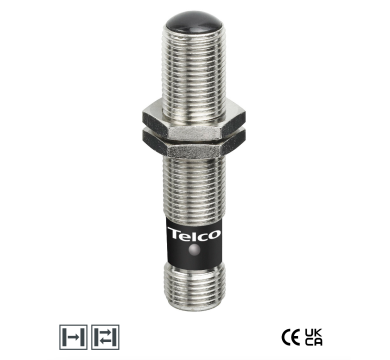

LR 110L TS58 J
| Function | Receiver |
| Sensing Range | Up to 40 m |
| Indicators | Yes |
| Optical Angle | +/- 3° (opening) |
| Housing | M12 x 1 |
| Housing Material | Stainless Steel |
| Connection | 4 pin, M12 plug |
| Photo Transistor | Silicon NPN |
| Power On Indicator | Green LED |
| Housing Material, Front Lens | Polycarbonate |
| Housing Material, Sensor Housing | Stainless Steel (AISI 316) |
| Vibration | 10 – 55 Hz, 0,5 mm |
| Shock | 30 g |
| Operation Temperature | – 25 to +65 °C |
| Storage Temperature | – 40 to +80 °C |
| Sealing Class | IP 67 |
| Light Immunity 20˚ | > 100 000 lux |
Wiring Diagram
Connections
Parallel Displacement
Angular Displacement
Dimensions
