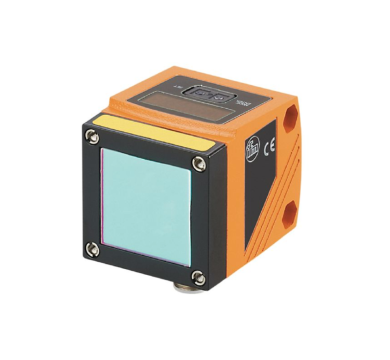

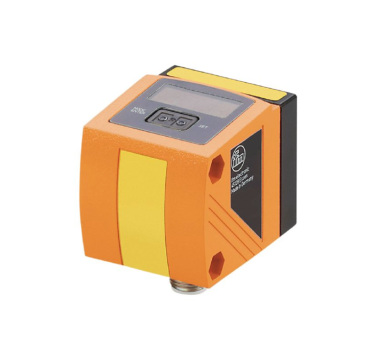

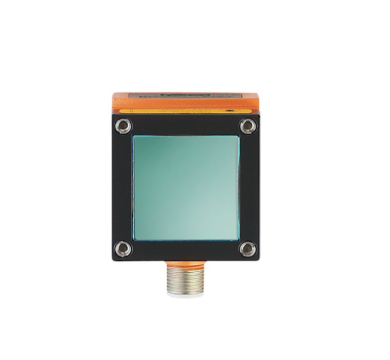

| Product characteristics |
| Laser protection class |
2 |
| Housing |
rectangular |
| Electrical data |
| Operating voltage [V] |
18...30 DC |
| Current consumption [mA] |
< 150 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Typ. lifetime [h] |
50000 |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Electrical design |
PNP |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (programmable) |
| Max. current load per output [mA] |
200 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20; (scalable IEC 61131-2) |
| Max. load [Ω] |
250 |
| Analogue voltage output [V] |
0...10; (scalable IEC 61131-2) |
| Min. load resistance [Ω] |
5000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Max. light spot width [mm] |
15 |
| Max. light spot height [mm] |
15 |
| Light spot dimensions refer to |
10 m |
| Background suppression [m] |
10...100 |
| Measuring/setting range |
| Measuring range [m] |
0.2...10; (white paper 200 x 200 mm 90% remission) |
| Sampling rate [Hz] |
1...33 |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable |
| SIO mode |
yes |
| Required master port type |
A |
| Process data analogue |
2 |
| Process data binary |
2 |
| Min. process cycle time [ms] |
6 |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
806 |
|
| Operating conditions |
| Ambient temperature [°C] |
-10...60 |
| Protection |
IP 67 |
| Tests / approvals |
| EMC |
|
| Laser protection class |
2 |
| Notes on laser protection |
| Caution: |
laser light |
| Power: |
<= 4,0 mW |
| Wave length: |
650 nm |
| pulse: |
1,3 ns |
| Do not stare into beam. |
|
| Avoid exposure to the laser light. |
|
| laser class: |
2 |
| |
EN / IEC60825-1:2007 |
| |
EN / IEC60825-1:2014 |
| |
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007. |
|
| MTTF [years] |
107 |
| Mechanical data |
| Weight [g] |
312 |
| Housing |
rectangular |
| Dimensions [mm] |
59 x 42 x 52 |
| Materials |
housing: diecast zinc; front lens: glass; LED window: PC |
| Lens alignment |
side lens |
| Displays / operating elements |
| Display |
| switching status |
2 x LED, yellow |
| operation |
LED, green |
| distance value, programming |
alphanumeric display, 4-digit |
|
| Accessories |
| Accessories (optional) |
|
| Remarks |
| Remarks |
| operating voltage "supply class 2" according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; coding: A |
| Other data |
| Parameter |
Setting range |
Factory setting |
| Uni |
mm, m, inch |
mm |
| OU1 |
Hno, Hnc, Fno, Fnc |
Hno |
| SP1 |
200...9999 |
1000 |
| nSP1 |
200...9999 |
800 |
| FSP1 |
200...9999 |
1200 |
| OU2 |
Hno, Hnc, Fno, Fnc, I, U |
I |
| SP2 |
200...9999 |
2000 |
| nSP2 |
200...9999 |
1800 |
| FSP2 |
200...9999 |
2200 |
| ASP |
0...9999 |
0 |
| AEP |
0...9999 |
9999 |
| rATE [Hz] |
1...33 |
15 |
| dS1 |
0...0.1...5 |
0 |
| dr1 |
0...0.1...5 |
0 |
| dS2 |
0...0.1...5 |
0 |
| dr2 |
0...0.1...5 |
0 |
| dFo |
0...0.1...5 |
0 |
| dIS |
d1...3; rd1...3; OFF |
d3 |
|
| repeatability/accuracy |
| |
repeatability of the measured values |
|
Accuracy |
|
| |
white (90 % remission) |
grey (18 % remission) |
white (90 % remission) |
grey (18 % remission) |
| 200...1000 mm |
± 4.5 mm |
± 6.0 mm |
± 15.0 mm |
± 16.0 mm |
| 1000...2000 mm |
± 5.0 mm |
±8.0 mm |
± 15.0 mm |
± 18.0 mm |
| 2000...4000 mm |
± 16.0 mm |
±19.0 mm |
± 25.0 mm |
± 30.0 mm |
| 4000...6000 mm |
± 24.0 mm |
± 33.0 mm |
± 35.0 mm |
± 45.0 mm |
| 6000...10000 mm |
± 50.0 mm |
- |
± 65.0 mm |
- |
|
| Sampling rate |
15 Hz |
| Extraneous light on the object |
< 40 klx |
|
| repeatability/accuracy |
| |
repeatability of the measured values |
|
Accuracy |
|
| |
white (90 % remission) |
grey (18 % remission) |
white (90 % remission) |
grey (18 % remission) |
| 200...2000 mm |
± 14.0 mm |
± 14.0 mm |
± 24.0 mm |
± 24.0 mm |
| 2000...4000 mm |
± 25.0 mm |
± 30.0 mm |
± 35.0 mm |
± 40 mm |
| 4000...6000 mm |
± 31.0 mm |
±45.0 mm |
± 41.0 mm |
± 55.0 mm |
| 6000...10000 mm |
± 60.0 mm |
- |
± 70.0 mm |
- |
|
| Sampling rate |
15 Hz |
| Extraneous light on the object |
< 40...100 klx |
| Range on black object (6 % remission) |
<= 4000 klx |
| The values apply at |
|
| constant ambient conditions |
23 °C / 960 hPa |
| minimum power-on time in minutes |
10 |
|
