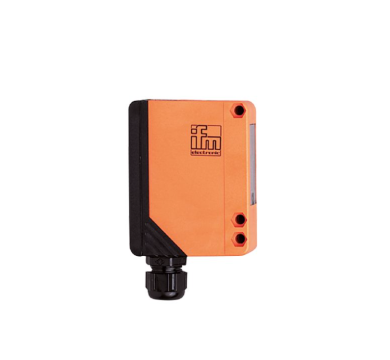

OA5106
| Product characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Type of light | red light | ||||||
| Housing | rectangular | ||||||
| Application | |||||||
| Special feature | polarisation filter; Function check output | ||||||
| Function principle | Retro-reflective sensor | ||||||
| Electrical data | |||||||
| Operating voltage [V] | 10...36 DC | ||||||
| Current consumption [mA] | < 50 | ||||||
| Protection class | II | ||||||
| Reverse polarity protection | yes | ||||||
| Type of light | red light | ||||||
| Wave length [nm] | 660 | ||||||
| Outputs | |||||||
| Electrical design | PNP/NPN | ||||||
| Output function | light-on/dark-on mode; (programmable) | ||||||
| Function check output | yes | ||||||
| Max. current load for function check output [mA] | 10 | ||||||
| Permanent current rating of switching output DC [mA] | 250 | ||||||
| Max. current load in dual output mode [mA] | 100 | ||||||
| Switching frequency DC [Hz] | 300 | ||||||
| Short-circuit protection | yes | ||||||
| Type of short-circuit protection | pulsed | ||||||
| Overload protection | yes | ||||||
| Detection zone | |||||||
| Range referred to prismatic reflector [m] | 0.2...8; (Prismatic reflector Ø 80 E20005) | ||||||
| Range adjustable | yes | ||||||
| Max. light spot diameter [mm] | 420 | ||||||
| Light spot dimensions refer to | at maximum range | ||||||
| Polarisation filter available | yes | ||||||
| Operating conditions | |||||||
| Ambient temperature [°C] | -25...60 | ||||||
| Protection | IP 65 | ||||||
| Tests / approvals | |||||||
| EMC |
|
||||||
| MTTF [years] | 403 | ||||||
| Mechanical data | |||||||
| Weight [g] | 286 | ||||||
| Housing | rectangular | ||||||
| Dimensions [mm] | 90 x 30 x 70 | ||||||
| Materials | PPO modified | ||||||
| Lens material |
|
||||||
| Lens alignment | side lens | ||||||
| Displays / operating elements | |||||||
| Display |
|
||||||
| Accessories | |||||||
| Items supplied |
|
||||||
| Remarks | |||||||
| Pack quantity | 1 pcs. | ||||||
| Electrical connection | |||||||
| Connection | terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5 | ||||||
| Diagrams and graphs | |||||||

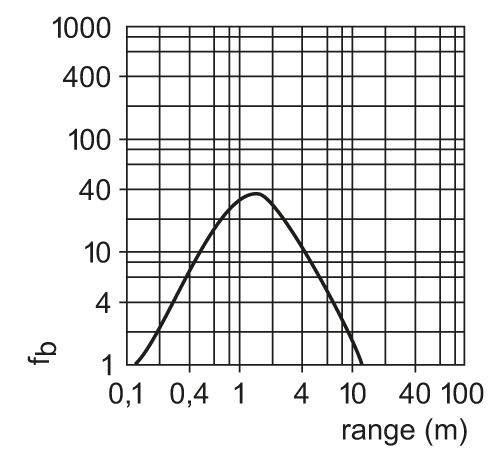

| excess gain graph | |||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OA5106-00 — 06.03.2003 —  |
|||||||
