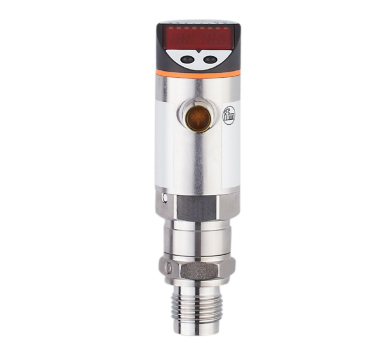

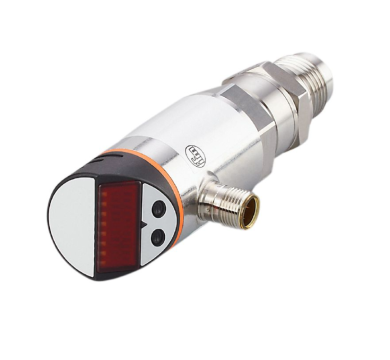

| Product characteristics |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Measuring range |
| -1...25 bar |
-14.5...362.5 psi |
-0.1...2.5 MPa |
|

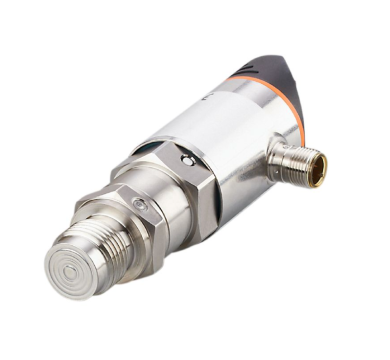

| Process connection |
threaded connection G 1/2 external thread |
| Application |
| Special feature |
Gold-plated contacts |
| Application |
flush mountable for industrial applications; for industrial applications |
| Media |
liquids and gases |
| Medium temperature [°C] |
-25...125 |
| Min. bursting pressure |
|
| Pressure rating |
|
| Type of pressure |
relative pressure |
| No dead space |
yes |
| Electrical data |
| Operating voltage [V] |
18...32 DC; (to SELV/PELV) |
| Current consumption [mA] |
< 35 |
| Min. insulation resistance [MΩ] |
100; (500 V DC) |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
0.3 |
| Integrated watchdog |
yes |
| Inputs / outputs |
| Number of inputs and outputs |
Number of digital outputs: 2; Number of analogue outputs: 1 |
| Outputs |
| Total number of outputs |
2 |
| Output signal |
switching signal; analogue signal; (configurable) |
| Electrical design |
PNP/NPN |
| Number of digital outputs |
2 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Permanent current rating of switching output DC [mA] |
250 |
| Switching frequency DC [Hz] |
< 500 |
| Number of analogue outputs |
1 |
| Analogue current output [mA] |
4...20; (scalable 1:4) |
| Max. load [Ω] |
(Ub - 10 V) / 20 mA |
| Analogue voltage output [V] |
0...10; (scalable 1:4) |
| Min. load resistance [Ω] |
2000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Measuring/setting range |
| Measuring range |
| -1...25 bar |
-14.5...362.5 psi |
-0.1...2.5 MPa |
|
| Set point SP |
| -0.8...25 bar |
-11.5...362.5 psi |
-0.08...2.5 MPa |
|
| Reset point rP |
| -0.9...24.9 bar |
-13...361 psi |
-0.09...2.49 MPa |
|
| Analogue start point |
| -1...18.75 bar |
-14.5...272 psi |
-0.1...1.88 MPa |
|
| Analogue end point |
| 5.25...25 bar |
76...362.5 psi |
0.53...2.5 MPa |
|
| In steps of |
| 0.05 bar |
0.5 psi |
0.01 MPa |
|
| Factory setting |
| |
SP1 = 6.25 bar |
rP1 = 5.75 bar |
| |
SP2 = 18.75 bar |
rP2 = 18.25 bar |
| |
ASP = 0.00 bar |
AEP = 25.00 bar |
|
| Accuracy / deviations |
| Switch point accuracy [% of the span] |
< ± 0,4; (Turn down 1:1) |
| Repeatability [% of the span] |
< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation [% of the span] |
< ± 0,3 (BFSL) / < ± 0,6 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting) |
| Linearity deviation [% of the span] |
< ± 0,5; (Turn down 1:1) |
| Hysteresis deviation [% of the span] |
< ± 0,1; (Turn down 1:1) |
| Long-term stability [% of the span] |
< ± 0,1; (Turn down 1:1; per year) |
| Temperature coefficient zero point [% of the span / 10 K] |
< ± 0,25; (0...80 °C) |
| Temperature coefficient span [% of the span / 10 K] |
< ± 0,25; (0...80 °C) |
| Response times |
| Response time [ms] |
< 1.5 |
| Damping process value dAP [s] |
0.01...4 |
| Damping for the analogue output dAA [s] |
0.01...4 |
| Max. response time analogue output [ms] |
3 |
| Software / programming |
| Parameter setting options |
hysteresis / window; normally open / normally closed; switching logic; current/voltage output; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit; zero point; span |
| Operating conditions |
| Ambient temperature [°C] |
-25...80 |
| Storage temperature [°C] |
-40...100 |
| Protection |
IP 65 |
| Tests / approvals |
| EMC |
| DIN EN 61000-6-2 |
|
| DIN EN 61000-6-3 |
|
|
| Shock resistance |
| DIN EN 60068-2-27 |
50 g (11 ms) |
|
| Vibration resistance |
| DIN EN 60068-2-6 |
20 g (10...2000 Hz) |
|
| MTTF [years] |
167.14 |
| Mechanical data |
| Weight [g] |
404.5 |
| Materials |
stainless steel (1.4301 / 304); stainless steel (1.4435 / 316L); PC; PBT; PEI; PTFE |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L) |
| Min. pressure cycles |
10 million |
| Process connection |
threaded connection G 1/2 external thread |
| Fill fluid for pressure transfer |
NEOBEE (food grade, FDA compliant) |

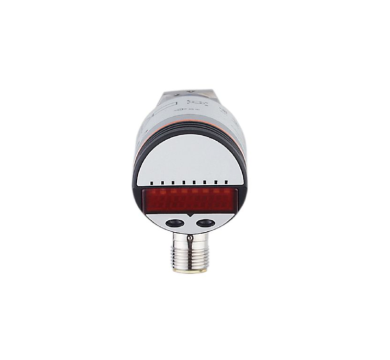

| Displays / operating elements |
| Display |
| Display unit |
3 x LED, green |
| switching status |
2 x LED, yellow |
| function display |
alphanumeric display, 4-digit |
| measured values |
alphanumeric display, 4-digit |
|
| Remarks |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |
