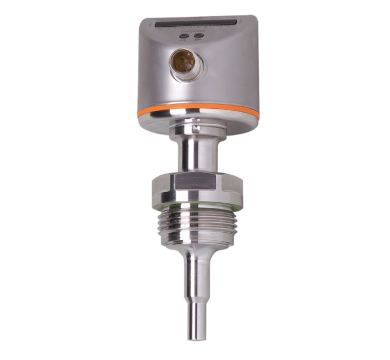

SI6700
| Product characteristics | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Number of inputs and outputs | Number of digital outputs: 1 | ||||||||
| Process connection | G 1 Aseptoflex Vario | ||||||||
| Application | |||||||||
| Special feature | Gold-plated contacts | ||||||||
| Application | hygienic systems | ||||||||
| Medium temperature [°C] | -25...95; (for SIP process: ...140 °C) | ||||||||
| Pressure rating [bar] | 30 | ||||||||
| Liquids | |||||||||
| Application | hygienic systems | ||||||||
| Medium temperature [°C] | -25...95; (for SIP process: ...140 °C) | ||||||||
| Gases | |||||||||
| Medium temperature [°C] | -25...95; (for SIP process: ...140 °C) | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | 19...36 DC | ||||||||
| Current consumption [mA] | < 60 | ||||||||
| Protection class | III | ||||||||
| Reverse polarity protection | yes | ||||||||
| Power-on delay time [s] | 10 | ||||||||
| Inputs / outputs | |||||||||
| Number of inputs and outputs | Number of digital outputs: 1 | ||||||||
| Outputs | |||||||||
| Total number of outputs | 1 | ||||||||
| Output signal | switching signal | ||||||||
| Electrical design | PNP | ||||||||
| Number of digital outputs | 1 | ||||||||
| Output function | normally open / normally closed; (parameterisable) | ||||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||||
| Permanent current rating of switching output DC [mA] | 250 | ||||||||
| Short-circuit protection | yes | ||||||||
| Type of short-circuit protection | pulsed | ||||||||
| Overload protection | yes | ||||||||
| Measuring/setting range | |||||||||
| Probe length L [mm] | 38 | ||||||||
| Liquids | |||||||||
| Setting range [cm/s] | 3...300 | ||||||||
| Greatest sensitivity [cm/s] | 3...100 | ||||||||
| Gases | |||||||||
| Setting range [cm/s] | 200...3000 | ||||||||
| Greatest sensitivity [cm/s] | 200...800 | ||||||||
| Accuracy / deviations | |||||||||
| Repeatability [cm/s] | 1...5 | ||||||||
| Note on repeatability |
|
||||||||
| Temperature drift [cm/s x 1/K] | 0.1; (for water 5...100 cm/s; 10...70 °C) | ||||||||
| Temperature gradient [K/min] | 300 | ||||||||
| Switch point accuracy [cm/s] | ± 2...± 10; (for water 5...100 cm/s; 25 °C; Factory setting) | ||||||||
| Hysteresis [cm/s] | 2...5; (for water 5...100 cm/s; 25 °C; Factory setting) | ||||||||
| Response times | |||||||||
| Response time [s] | 1...10 | ||||||||
| Liquids | |||||||||
| Response time [s] | 1...10 | ||||||||
| Gases | |||||||||
| Response time [s] | 1...10 | ||||||||
| Software / programming | |||||||||
| Adjustment of the switch point | pushbutton | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -25...60 | ||||||||
| Protection | IP 67; IP 69K | ||||||||
| Tests / approvals | |||||||||
| EMC |
|
||||||||
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| MTTF [years] | 298 | ||||||||
| Mechanical data | |||||||||
| Weight [g] | 433.5 | ||||||||
| Materials | stainless steel (1.4404 / 316L); PC; PBT-GF20; EPDM/X; Sealing: FKM | ||||||||
| Materials (wetted parts) | stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4 | ||||||||
| Process connection | G 1 Aseptoflex Vario | ||||||||
| Installation length EL [mm] | 54.8 | ||||||||
| Displays / operating elements | |||||||||
| Display |
|
||||||||
| Remarks | |||||||||
| Pack quantity | 1 pcs. | ||||||||
| Electrical connection | |||||||||
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated | ||||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SI6700-01 — 26.04.2021 —  |
|||||||||
