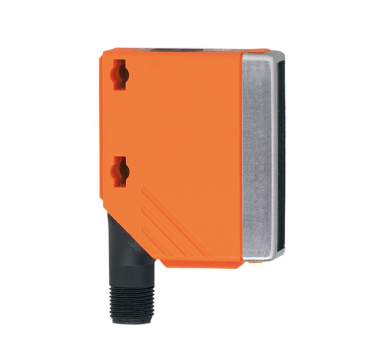

Product characteristics |
Type of light |
red light |
Housing |
rectangular |
Application |
Function principle |
Through-beam sensor |
Electrical data |
Operating voltage [V] |
10...36 DC |
Current consumption [mA] |
11 |
Protection class |
II |
Reverse polarity protection |
yes |
Type of light |
red light |
Wave length [nm] |
624 |
Outputs |
Electrical design |
PNP |
Output function |
light-on/dark-on mode; (programmable) |
Max. voltage drop switching output DC [V] |
2.5 |
Permanent current rating of switching output DC [mA] |
200 |
Switching frequency DC [Hz] |
1000 |
Short-circuit protection |
yes |
Type of short-circuit protection |
pulsed |
Overload protection |
yes |
Detection zone |
Transmitter / receiver |
receiver |
Range [m] |
< 25 |
Range adjustable |
yes |
Operating conditions |
Ambient temperature [°C] |
-25...60 |
Protection |
IP 67 |
Tests / approvals |
EMC |
|
MTTF [years] |
801 |
Mechanical data |
Weight [g] |
67.5 |
Housing |
rectangular |
Dimensions [mm] |
56 x 18.2 x 46.8 |
Materials |
housing: PA; bezel: stainless steel; operator interface: TPU |
Lens material |
|
Lens alignment |
side lens |
Displays / operating elements |
Display |
switching status |
1 x LED, yellow |
|
Teach function |
yes |
Electronic lock |
yes |
Remarks |
Pack quantity |
1 pcs. |
Electrical connection |
Connection |
Connector: 1 x M12; coding: A |
Diagrams and graphs |

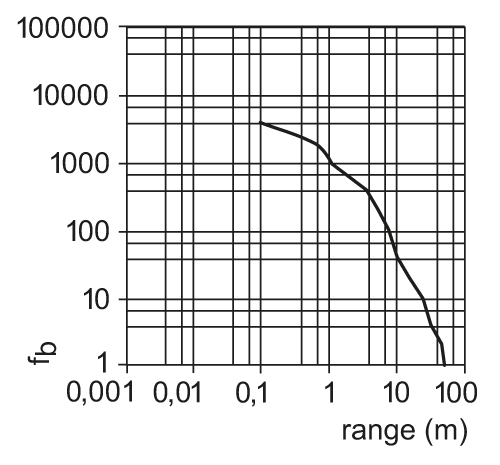

excess gain graph |
|
