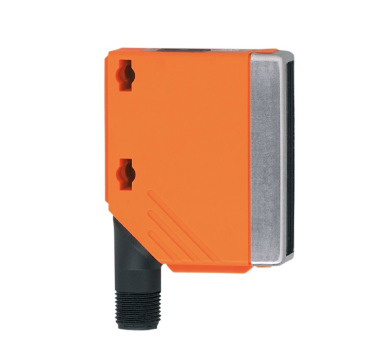

O5S500
Product characteristics | |||
---|---|---|---|
Type of light | red light | ||
Housing | rectangular | ||
Application | |||
Function principle | Through-beam sensor | ||
Electrical data | |||
Operating voltage [V] | 10...36 DC | ||
Current consumption [mA] | 20 | ||
Protection class | II | ||
Reverse polarity protection | yes | ||
Type of light | red light | ||
Wave length [nm] | 624 | ||
Detection zone | |||
Transmitter / receiver | transmitter | ||
Range [m] | < 25 | ||
Range adjustable | no | ||
Max. light spot diameter [mm] | 625 | ||
Light spot dimensions refer to | at maximum range | ||
Operating conditions | |||
Ambient temperature [°C] | -25...60 | ||
Protection | IP 67 | ||
Tests / approvals | |||
EMC |
|
||
MTTF [years] | 617 | ||
Mechanical data | |||
Weight [g] | 65.5 | ||
Housing | rectangular | ||
Dimensions [mm] | 56 x 18.2 x 46.8 | ||
Materials | housing: PA; bezel: stainless steel; operator interface: TPU | ||
Lens material |
|
||
Lens alignment | side lens | ||
Displays / operating elements | |||
Display |
|
||
Remarks | |||
Remarks |
|
||
Pack quantity | 1 pcs. | ||
Electrical connection | |||
Connection | Connector: 1 x M12; coding: A | ||
Diagrams and graphs | |||
excess gain graph |
|
||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O5S500-00 — 13.04.2007 — |
