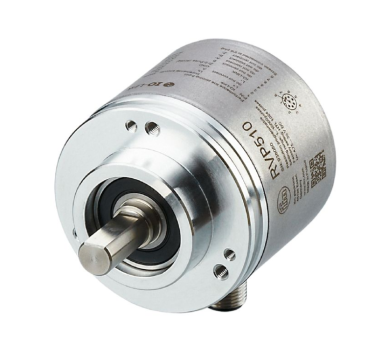

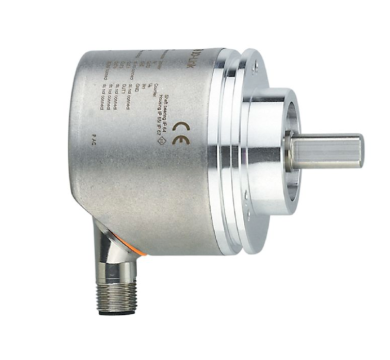

| Product characteristics |
| Resolution |
1...10000; (parameterisable; Factory setting: 1024) resolution |
| Communication interface |
IO-Link |
| Shaft design |
solid shaft |
| Shaft diameter [mm] |
10 |
| Application |
| Function principle |
incremental |
| Detection system |
magnetic |
| Application |
encoder; Speed monitor; counter |
| Electrical data |
| Operating voltage [V] |
4.75...30 DC |
| Current consumption [mA] |
< 350 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. revolution electrical [U/min] |
12000 |
| Outputs |
| Electrical design |
HTL/TTL |
| Switching frequency [kHz] |
1000 |
| Factory setting |
| Output function: HTL (50 mA) |
|
| Short-circuit protection |
yes |
| Phase difference A and B [°] |
90 |
| Measuring/setting range |
| Resolution |
1...10000; (parameterisable; Factory setting: 1024) resolution |
| Speed monitor |
| Set point SP |
| -9994...9999 U/min |
-166.6...166.7 Hz |
|
| Reset point rP |
| -9999...9994 U/min |
-166.7...166.6 Hz |
|
| Counter |
| Preset point |
1...9999 |
| Accuracy / deviations |
| Accuracy [°] |
0.1 |
| Software / programming |
| Parameter setting options |
encoder; Resolution; direction of rotation; HTL; TTL; Speed monitor; Resolution |
| Interfaces |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SIO mode |
yes |
| Min. process cycle time [ms] |
2.3 |
| Operating conditions |
| Ambient temperature [°C] |
-40...85 |
| Storage temperature [°C] |
-40...85 |
| Max. relative air humidity [%] |
95; (condensation not permissible) |
| Protection |
IP 65; (on the housing: IP 67; on the shaft: IP 64) |
| Tests / approvals |
| Shock resistance |
|
| Vibration resistance |
|
| MTTF [years] |
218 |
| Mechanical data |
| Weight [g] |
429 |
| Dimensions [mm] |
Ø 58 / L = 80.2 |
| Materials |
flange: aluminium; housing: stainless steel (1.4521 / 444); display window: PEI |
| Max. revolution, mechanical [U/min] |
12000 |
| Max. starting torque [Nm] |
1 |
| Reference temperature torque [°C] |
20 |
| Shaft design |
solid shaft |
| Shaft diameter [mm] |
10 |
| Shaft material |
|
| Max. shaft load axial (at the shaft end) [N] |
40 |
| Max. shaft load radial (at the shaft end) [N] |
60 |
| Fixing flange |
clamping flange |
| Displays / operating elements |

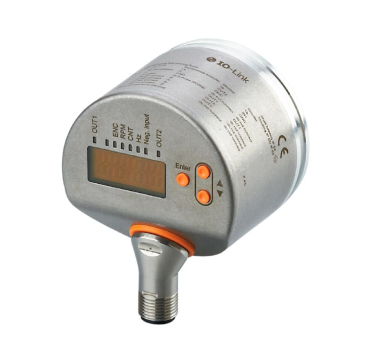

| Display |
| |
10-segment display, red/green 4-digit parameterisable |
| |
2 x LED, yellow |
| |
5 x LED, green |
|
| Electrical connection |
| IO-Link |
Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m; (IO-Link: max. 20 m) |
| Diagrams and graphs |

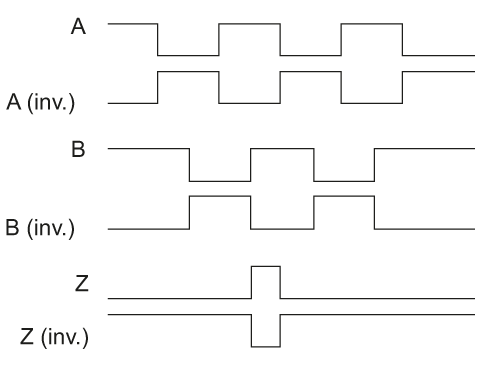

| Pulse diagram |
| |
direction of rotation clockwise (looking at the shaft) |
|
