BES0068
Typecode:

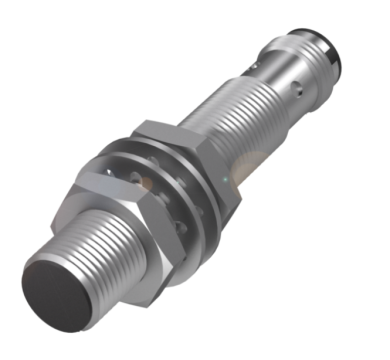

BES M12MI-PSC40B-S04G
Product description
Our BES inductive standard sensors with preferred types for detecting objects in metal areas are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
|
Dimension |
Ø 12 x 65 mm |
|
Style |
M12x1 |
|
Installation |
for flush mounting |
|
Range |
4 mm |
|
Switching output |
PNP Normally open (NO) |
|
Switching frequency |
2500 Hz |
|
Housing material |
Brass, Nickel-free coated |
|
Material sensing surface |
PBT |
|
Connection |
Connector, M12x1-Male, 3-pin |
|
Operating voltage Ub |
10...30 VDC |
|
Ambient temperature |
-25...70 °C |
|
IP rating |
IP68 |
|
Approval/Conformity |
CE, cULus, EAC, WEEE |
