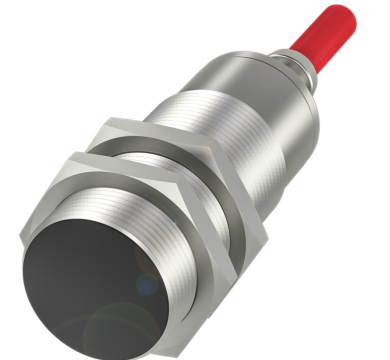

BES02H7

Temperature-rated inductive sensors

Typecode:

BES 516-114-SA1-05

Product description

Our BES-series temperature-rated inductive sensors can withstand ultra-high temperatures up to 230 °C. Depending on the version, both the housing and cable construction are designed for elevated temperatures. The electronics are fully integrated and can be easily connected to appropriate accessories.
Several form factors allow these sensors to be easily integrated into various situations, even those where space is at a premium. Some versions are also available as high pressure-rated sensors. This represents a significant expansion to the range of applications.

Dimension	Ø 30 x 91.5 mm
Style	M30x1.5
Installation	for flush mounting
Range	10 mm
Switching output	PNP NO/NC
Switching frequency	300 Hz
Housing material	Brass, nickel plated
Material sensing surface	PBT
Connection	Cable, 5.00 m, Silicone
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...120 °C
IP rating	IP67
Approval/Conformity	CE, EAC, WEEE
