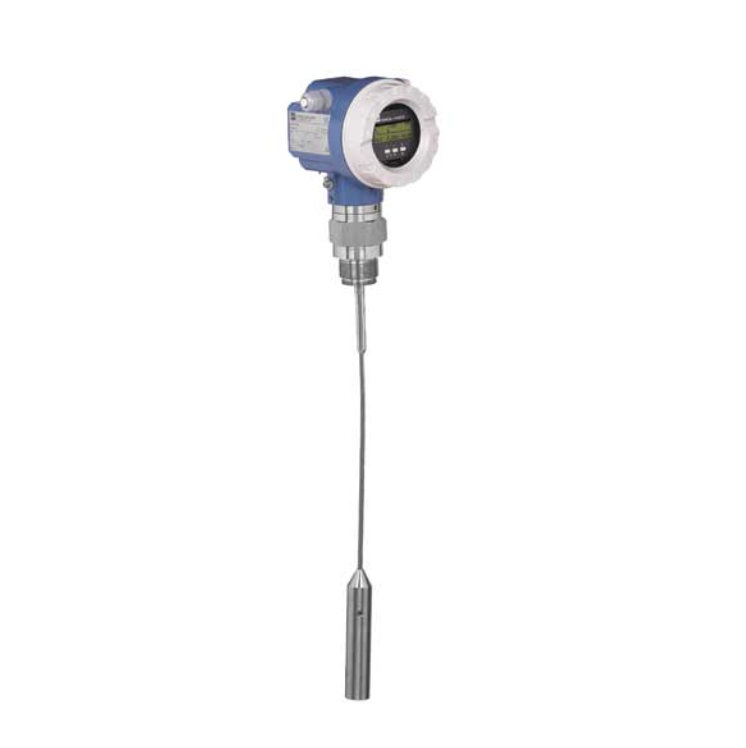

Cảm biến báo mức FMP40-ABB2GRJH21AA
-
Characteristic / Application
Powdered or granular solids
Suitable for measurement with heavy dust production -
Supply / Communication
2-wire 16-36V, DC
4-wire 10,5-32V, DC
4-wire 90-250V, 50/60Hz -
Ambient temperature
-40 °C ... +80 °C
(-40°F ... 176 °F) -
Process temperature
-40 °C ... +150 °C
(-40°F ... 302°F) -
Process pressure / max. overpressure limit
Vacuum...40bar
(Vaccum...580psi) -
Main wetted parts
316, PTFE
-
Process connection
3/4" + 1-1/2" G+NPT
Flange >=DN40 -
Blocking distance
Top: 200mm (7.87")
Bottom: 250mm (9.87") (Rope probe) -
Sensor length
Rod probe: 4m (13ft)
Rope probe: 35m (115ft) -
Max. measurement distance
35m (115ft)
-
Communication
4 ... 20mA HART
PROFIBUS PA
FOUNDATION Fieldbus -
Certificates / Approvals
ATEX
FM
CSA
TIIS
WGH
SIL
NACE
EN10204-3.1 -
Options
Separate electronics, separate display
-
Successor
FMP56, FMP57
-
Application limits
Dk <= 1,6
