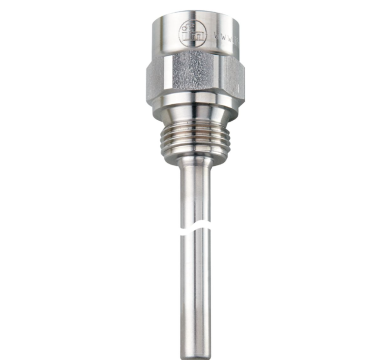

E37620
| Application | ||
|---|---|---|
| Design | for temperature sensors EL = 150 mm | |
| Pressure rating [bar] | 100 | |
| Note on pressure rating |
|
|
| Mechanical data | ||
| Weight [g] | 145.1 | |
| Materials | stainless steel (1.4571/316Ti ) | |
| Sensor connection | G 1/2 Ø 6 mm | |
| Process connection | G 1/2 | |
| Installation length EL [mm] | 124 | |
| Bore length BL [mm] | 150 | |
| Remarks | ||
| Pack quantity | 1 pcs. | |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37620-00 — 17.09.2014 —  |
||
