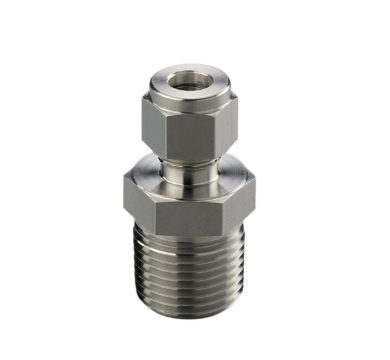

E40261
| Application | |
|---|---|
| Installation | Progressive ring fitting |
| Pressure rating [bar] | 50 |
| MAWP (for applications according to CRN) [bar] | 50 |
| Tests / approvals | |
| Pressure equipment directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
| Mechanical data | |
| Weight [g] | 80 |
| Material | stainless steel (1.4404 / 316L) |
| Sensor connection | Ø 8 mm |
| Process connection | threaded connection 1/2" NPT |
| Remarks | |
| Pack quantity | 1 pcs. |
