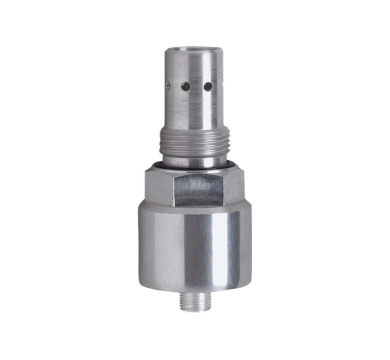

LDH100
| Product characteristics | |||||||
|---|---|---|---|---|---|---|---|
| Number of inputs and outputs | Number of analogue outputs: 2 | ||||||
| Process connection | G 3/4 | ||||||
| Application | |||||||
| Media | mineral oils; synthetic esters; biodegradable oils | ||||||
| Tank pressure [bar] | 50 | ||||||
| Oil | |||||||
| Medium temperature [°C] | -40...105 | ||||||
| Electrical data | |||||||
| Operating voltage [V] | 9...33 DC | ||||||
| Current consumption [mA] | < 25 | ||||||
| Protection class | III | ||||||
| Reverse polarity protection | no | ||||||
| Measuring principle | capacitive | ||||||
| Inputs / outputs | |||||||
| Number of inputs and outputs | Number of analogue outputs: 2 | ||||||
| Outputs | |||||||
| Total number of outputs | 2 | ||||||
| Number of analogue outputs | 2 | ||||||
| Analogue current output [mA] | 4...20 | ||||||
| Max. load [Ω] | (Ub - 8) x 25 | ||||||
| Resolution of analogue output | φ: 1% / T: 0.1 K | ||||||
| Measuring/setting range | |||||||
| Temperature monitoring | |||||||
| Measuring range [°C] | -20...120 | ||||||
| Accuracy / deviations | |||||||
| Accuracy | φ: ± 3 % / T: ± 2 % | ||||||
| Response times | |||||||
| Response time [s] | 1.3 | ||||||
| Operating conditions | |||||||
| Ambient temperature [°C] | -40...85 | ||||||
| Storage temperature [°C] | -40...85 | ||||||
| Max. relative air humidity [%] | 100 | ||||||
| Protection | IP 67 | ||||||
| Tests / approvals | |||||||
| EMC |
|
||||||
| Vibration resistance |
|
||||||
| MTTF [years] | 90 | ||||||
| Mechanical data | |||||||
| Weight [g] | 176.5 | ||||||
| Materials (wetted parts) | aluminium; HNBR; polyurethane resin; epoxy resin | ||||||
| Process connection | G 3/4 | ||||||
| Remarks | |||||||
| Remarks |
|
||||||
| Pack quantity | 1 pcs. | ||||||
| Electrical connection | |||||||
| Connection | Connector: 1 x M12; coding: A | ||||||
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LDH100-01 — 17.08.2021 —  |
|||||||
