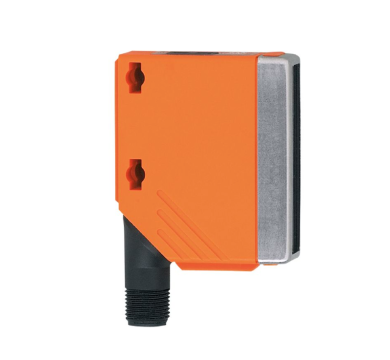

Product characteristics |
Type of light |
red light |
Laser protection class |
1 |
Housing |
rectangular |
Application |
Special feature |
polarisation filter |
Function principle |
Retro-reflective sensor |
Electrical data |
Operating voltage [V] |
10...36 DC |
Current consumption [mA] |
15 |
Protection class |
II |
Reverse polarity protection |
yes |
Type of light |
red light |
Wave length [nm] |
655 |
Outputs |
Electrical design |
PNP |
Output function |
light-on/dark-on mode; (programmable) |
Max. voltage drop switching output DC [V] |
2.5 |
Permanent current rating of switching output DC [mA] |
200 |
Switching frequency DC [Hz] |
2000 |
Short-circuit protection |
yes |
Type of short-circuit protection |
pulsed |
Overload protection |
yes |
Detection zone |
Range referred to prismatic reflector [m] |
15; (Prismatic reflector Ø 80 E20005) |
Range adjustable |
yes |
Diameter of the smallest detectable object [mm] |
3; (1 m; 15 m: 20) |
Max. light spot diameter [mm] |
40 |
Light spot dimensions refer to |
at maximum range |
Polarisation filter available |
yes |
Operating conditions |
Ambient temperature [°C] |
-10...60 |
Protection |
IP 67 |
Tests / approvals |
EMC |
|
Laser protection class |
1 |
Notes on laser protection |
Caution: |
laser light |
laser class: |
1 |
|
EN / IEC60825-1:2007 |
|
EN / IEC60825-1:2014 |
|
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007. |
|
MTTF [years] |
602 |
Mechanical data |
Weight [g] |
71 |
Housing |
rectangular |
Dimensions [mm] |
56 x 18.2 x 46.8 |
Materials |
housing: PA; bezel: stainless steel; operator interface: TPU |
Lens material |
|
Lens alignment |
side lens |
Displays / operating elements |
Display |
switching status |
1 x LED, yellow |
|
Teach function |
yes |
Electronic lock |
yes |
Remarks |
Remarks |
operating voltage "supply class 2" according to cULus |
|
Pack quantity |
1 pcs. |
Electrical connection |
Connection |
Connector: 1 x M12; coding: A |
