BES004N

Inductive standard sensors with preferred types

Typecode:

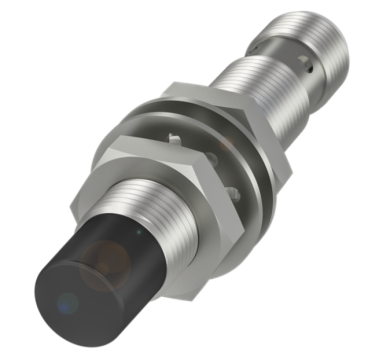

BES M12MG-PSC80F-S04G

Product description

Our BES inductive standard sensors with preferred types for detecting objects in metal areas are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.

Dimension	Ø 12 x 60 mm
Style	M12x1
Installation	non-flush
Range	8 mm
Switching output	PNP normally open (NO)
Switching frequency	1000 Hz
Housing material	Brass, Nickel-free coated
Material sensing surface	PBT
Connection	Connector, M12x1-Male, 4-pin
Operating voltage Ub	10...30 VDC
Ambient temperature	-25...70 °C
IP rating	IP68
Approval/Conformity	CE, cULus, EAC, WEEE
